CentOS 6.3_Nagios配置笔记

showerlee — Tue, 27 Aug 2013 11:10:41 +0000

一.Nagios监控主机配置(IP:192.168.7.249)

1、安装nrpe服务

解压缩

[root@nagios ~]# tar -zxvf nrpe-2.14.tar.gz

[root@nagios ~]# cd nrpe-2.14

编译

[[root@nagios nrpe-2.14]#./configure

root@nagios nrpe-2.14]# make all

[root@nagios nrpe-2.14]# make install-plugin

只运行这一步就行了,因为只需要check_nrpe插件

2、编辑commands.cfg文件定义nrpe对的使用

[root@nagios ~]# vim /usr/local/nagios/etc/objects/commands.cfg

在最后面增加如下内容:

# 'check_nrpe ' command definition

define command{

command_name check_nrpe

command_line $USER1$/check_nrpe -H $HOSTADDRESS$ -c $ARG1$

}

说明：

command_name check_nrpe

定义命令名称为check_nrpe,在services.cfg中要使用这个名称.

command_line $USER1$/check_nrpe -H $HOSTADDRESS$ -c $ARG1$

这是定义实际运行的插件程序.这个命令行的书写要完全按照check_nrpe这个命令的用法.不知道用法的就用check_nrpe –h查看

-c后面带的$ARG1$参数是传给nrpe daemon执行的检测命令,之前说过了它必须是nrpe.cfg中所定义的那5条命令中的其中一条.在services.cfg中使用check_nrpe的时候要用!带上这个参数

3、配置监控对象（工作站及其服务等）

[root@nagios ~]# vim /usr/local/nagios/etc/nagios.cfg

在cfg_file=/usr/local/nagios/etc/objects/localhost.cfg下添加：

cfg_file=/usr/local/nagios/etc/objects/services.cfg

4、新建linux.cfg设置要监控的内容(address表示被监控的客户端IP)

[root@nagios ~]# vim /usr/local/nagios/etc/object/services.cfg

#定义被监控端名称和地址

define host{

use linux-server

host_name server1

alias server1

address 192.168.7.93

}

#定义被监控端服务

define service{

host_name server1

service_description check_ping

check_command check_nrpe!check_ping

max_check_attempts 5

normal_check_interval 3

retry_check_interval 2

check_period 24x7

notification_interval 10

notification_period 24x7

notification_options w,u,c,r

}

define service{

host_name server1

service_description check_users

check_command check_nrpe!check_users

max_check_attempts 5

normal_check_interval 3

retry_check_interval 2

check_period 24x7

notification_interval 10

notification_period 24x7

notification_options w,u,c,r

}

define service{

host_name server1

service_description check_load

check_command check_nrpe!check_load

max_check_attempts 5

normal_check_interval 3

retry_check_interval 2

check_period 24x7

notification_interval 10

notification_period 24x7

notification_options w,u,c,r

}

define service{

host_name server1

service_description check_disk_sda3

check_command check_nrpe!check_disk_sda3

max_check_attempts 5

normal_check_interval 3

retry_check_interval 2

check_period 24x7

notification_interval 10

notification_period 24x7

notification_options w,u,c,r

}

define service{

host_name server1

service_description check_zombie_procs

check_command check_nrpe!check_zombie_procs

max_check_attempts 5

normal_check_interval 3

retry_check_interval 2

check_period 24x7

notification_interval 10

notification_period 24x7

notification_options w,u,c,r

}

define service{

host_name server1

service_description check_total_procs

check_command check_nrpe!check_total_procs

max_check_attempts 5

normal_check_interval 3

retry_check_interval 2

check_period 24x7

notification_interval 10

notification_period 24x7

notification_options w,u,c,r

}

define service{

host_name server1

service_description check_swap

check_command check_nrpe!check_swap

max_check_attempts 5

normal_check_interval 3

retry_check_interval 2

check_period 24x7

notification_interval 10

notification_period 24x7

notification_options w,u,c,r

}

define service{

host_name server1

service_description check_http

check_command check_nrpe!check_http

max_check_attempts 5

normal_check_interval 3

retry_check_interval 2

check_period 24x7

notification_interval 10

notification_period 24x7

notification_options w,u,c,r

}

define service{

host_name server1

service_description check_ssh

check_command check_nrpe!check_ssh

max_check_attempts 5

normal_check_interval 3

retry_check_interval 2

check_period 24x7

notification_interval 10

notification_period 24x7

notification_options w,u,c,r

}

define service{

host_name server1

service_description check_mysql

check_command check_nrpe!check_mysql

max_check_attempts 5

normal_check_interval 3

retry_check_interval 2

check_period 24x7

notification_interval 10

notification_period 24x7

notification_options w,u,c,r

}

//对以上的linux.cfg文件编辑如果有错，将会导致nagios无法启动；

验证Nagios 配置文件

[root@nagios ~]# /usr/local/nagios/bin/nagios -v /usr/local/nagios/etc/nagios.cfg

5、重启

[root@nagios ~]#service nagios restart

[root@nagios ~]#service httpd restart

6、测试无法访问，检查一下IPtables是否关闭。

[root@nagios ~]# service iptables status

添加nrpe 5666端口：

[root@nagios ~]# vim /etc/sysconfig/iptables

-A INPUT -m state --state NEW -m tcp -p tcp --dport 5666 -j ACCEPT

[root@nagios ~]# service iptables restart

测试一下监控机使用check_nrpe与被监控机运行的nrpedaemon之间的通信.

[root@nagios ~]# /usr/local/nagios/libexec/check_nrpe -H 192.168.7.93 //被监控制端IP地址

NRPE v2.14

二、Linux被监控主机配置(IP:192.168.7.93)

1、增加用户

[root@web ~]# useradd nagios

[root@web ~]# passwd nagios

2、安装nagios插件

解压缩

[root@web ~]# tar -zxvf nagios-plugins-1.4.16.tar.gz

[root@web ~]# cd nagios-plugins-1.4.16

编译安装

[root@web nagios-plugins-1.4.16]# ./configure --with-nagios-user=nagios --with-nagios-group=nagios

[root@web nagios-plugins-1.4.16]# make;make install

这一步完成后会在/usr/local/nagios/下生成两个目录libexec和share

[root@web ~]# ls /usr/local/nagios/

include libexec share

改变目录权限使nagios用户能够访问

[root@web ~]# chown -R nagios.nagios /usr/local/nagios

[root@web ~]# chown -R nagios.nagios /usr/local/nagios/libexec

3、安装nrpe服务

解压缩

[root@web ~]# tar -zxvf nrpe-2.14.tar.gz

[root@web ~]# cd nrpe-2.14

编译

[root@web nrpe-2.14]#./configure

输出如下

*** Configuration summary for nrpe 2.8.1 05-10-2007 ***:

General Options:

-------------------------

NRPE port: 5666

NRPE user: nagios

NRPE group: nagios

Nagios user: nagios

Nagios group: nagios

Review the options above for accuracy. If they look okay,

type 'make all' to compile the NRPE daemon and client.

可以看到NRPE的端口是5666,下一步是make all

[root@web nrpe-2.14]# make all

输出如下

*** Compile finished ***

If the NRPE daemon and client compiled without any errors, you

can continue with the installation or upgrade process.

Read the PDF documentation (NRPE.pdf) for information on the next

steps you should take to complete the installation or upgrade.

接下来安装NPRE插件,daemon和示例配置文件

安装check_nrpe这个插件

[root@web nrpe-2.14]# make install-plugin

之前说过监控机需要安装check_nrpe这个插件,被监控机并不需要,我们在这里安装它是为了测试的目的

安装deamon

[root@web nrpe-2.14]# make install-daemon

安装配置文件

[root@web nrpe-2.14]# make install-daemon-config

现在再查看nagios目录就会发现有5个目录

[root@web nrpe-2.14]# ls /usr/local/nagios/

bin etc include libexec share

按照安装文档的说明,是将NRPE deamon作为xinetd下的一个服务运行的.在这样的情况下xinetd就必须要先安装好,不过一般系统已经默认装了

4、安装xinetd脚本

[root@web nrpe-2.14]# make install-xinetd

输出如下

/usr/bin/install -c -m 644 sample-config/nrpe.xinetd /etc/xinetd.d/nrpe

可以看到创建了这个文件/etc/xinetd.d/nrpe

编辑这个脚本

[root@web ~]# vim /etc/xinetd.d/nrpe

# default: on

# description: NRPE (Nagios Remote Plugin Executor)

service nrpe

{

flags = REUSE

socket_type = stream

port = 5666

wait = no

user = nagios

group = nagios

server = /usr/local/nagios/bin/nrpe

server_args = -c /usr/local/nagios/etc/nrpe.cfg --inetd

log_on_failure += USERID

disable = no

only_from = 127.0.0.1 //在后面增加监控主机的地址,例如:192.168.7.249

}

改后

only_from = 127.0.0.1,192.168.7.249

配置nrpe信息

[root@web ~]# vi /usr/local/nagios/etc/nrpe.cfg

81 allowed_hosts=127.0.0.1,192.168.7.249 //允许192.168.7.249服务器端对其监控

将219-223这5行注释掉,并在末尾添加如下命令:

command[check_ping]=/usr/local/nagios/libexec/check_ping -H 192.168.7.93 -w 3000.0,80% -c 5000.0,100% -p 5

command[check_users]=/usr/local/nagios/libexec/check_users -w 5 -c 10

command[check_load]=/usr/local/nagios/libexec/check_load -w 15,10,5 -c 30,25,20

command[check_disk_sda3]=/usr/local/nagios/libexec/check_disk -w 20% -c 10% -p /dev/sda3

command[check_zombie_procs]=/usr/local/nagios/libexec/check_procs -w 5 -c 10 -s Z

command[check_total_procs]=/usr/local/nagios/libexec/check_procs -w 150 -c 200

command[check_swap]=/usr/local/nagios/libexec/check_swap -w 20% -c 10%

command[check_http]=/usr/local/nagios/libexec/check_http -H 192.168.7.93

command[check_ssh]=/usr/local/nagios/libexec/check_ssh -H 192.168.7.93

command[check_mysql]=/usr/local/nagios/libexec/check_tcp -H 192.168.7.93 -p 3306

---------------------

注:这里客户端/usr/local/nagios/etc/nrpe.cfg内的command[check_mysql]与服务器端/usr/local/nagios/etc/object/services.cfg内的check_command check_nrpe!check_mysql

对应,services.cfg格式在服务器端/usr/local/nagios/etc/object/commands.cfg内有详解.

---------------------

5、启动NRPE

[root@web ~]# /usr/local/nagios/bin/nrpe -c /usr/local/nagios/etc/nrpe.cfg -d

重启服务可用lsof -i:5666 查看PID,并kill -9 "PID",而后重复上述启动命令.

//检测nrep配置文件的正确性

#netstat -an | grep 5666 //是否监听5666用于nrpe通信的端口

6、测试无法访问，检查一下IPtables是否关闭。

[root@web ~]# service iptables status

添加nrpe 5666端口：

[root@web ~]# vim /etc/sysconfig/iptables

-A INPUT -m state --state NEW -m tcp -p tcp --dport 5666 -j ACCEPT

[root@web ~]# service iptables restart

7、在服务端监控端执行检测工作站nrpe信息

[root@nagios ~]# /usr/local/nagios/libexec/check_nrpe -H 192.168.7.93

NRPE v2.14

8、查看nrpe进程

[root@localhost ~]# ps -elf |grep nrpe

[root@web ~]# ps -elf |grep nrpe

5 S nagios 1480 1 0 80 0 - 9708 poll_s Mar14 ? 00:00:00 /usr/local/nagios/bin/nrpe -c /usr/local/nagios/etc/nrpe.cfg -d

0 S root 1611 1437 0 80 0 - 25809 pipe_w 00:40 pts/0 00:00:00 grep nrpe

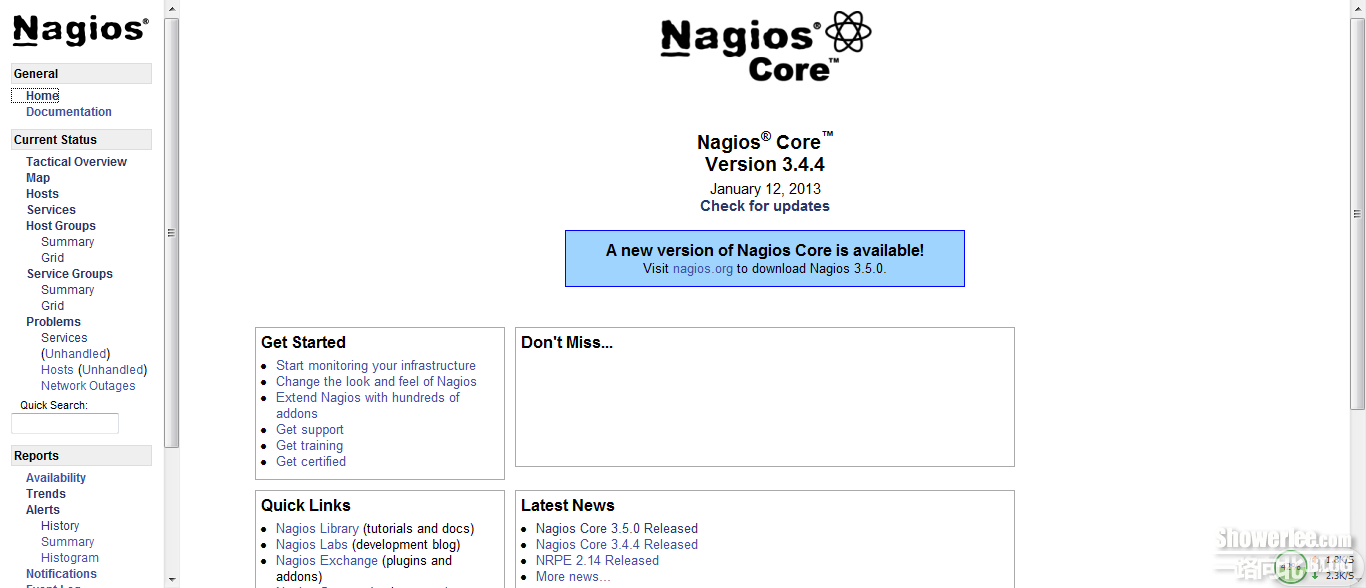

9、登录到WEB界面

修改密码:

htpasswd -c /usr/local/nagios/htpasswd.users nagiosadmin

输入密码123456

http://192.168.7.249/nagios/

输入用户名密码:

nagiosadmin 123456

点击Services:

至此大功告成...

注: nrpe 提示Connection refused by host

在centos6.3 x64上安装nagios的nrpe服务，当nrpe顺利安装完成之后，执行/usr/local/nagios/libexec/check_nrpe -H localhost，提示Connection refused by host

解决方法：

启动NRPE

[root@web ~]# /usr/local/nagios/bin/nrpe -c /usr/local/nagios/etc/nrpe.cfg -d

然后执行，netstat -an | grep 5666

显示：tcp 0 0 127.0.0.1:5666 0.0.0.0:* LISTEN

则启动成功。

然后再执行：/usr/local/nagios/libexec/check_nrpe -H localhost

返回：NRPE v2.14

进阶:

----监控内存----

【客户端】

1、添加脚本：

vi check_mem.sh

-----------------

TOTAL=`free -m | head -2 |tail -1 |gawk '{print $2}'`

# Free memory

FREE=`free -m | head -2 |tail -1 |gawk '{print $4}'`

# to calculate free percent

# use the expression free * 100 / total

FREETMP=`expr $FREE \* 100`

PERCENT=`expr $FREETMP / $TOTAL`

echo "$FREE MB ($PERCENT%) Free Memory"

exit 0

-------------------------

并且把该脚本复制到/usr/local/nagios/libexec，赋予执行权限，属主改为nagios

#cp check_mem.sh /usr/local/nagios/libexec

#chmod u+x check_mem.sh

#chown nagios check_mem.sh

2、修改配置文件:

vi /usr/local/nagios/etc/nrpe.cfg

添加:

command[check_mem]=/usr/local/nagios/libexec/check_mem.sh -w 150 -c 100

3、在客户端测试脚本，

# ./check_mem.sh

200 MB (1%) Free Memory

4.重启服务

[root@server1 libexec]# lsof -i:5666

COMMAND PID USER FD TYPE DEVICE SIZE/OFF NODE NAME

nrpe 4457 nagios 4u IPv4 485359 0t0 TCP *:5666 (LISTEN)

[root@server1 libexec]# kill -9 4457

[root@server1 libexec]# /usr/local/nagios/bin/nrpe -c /usr/local/nagios/etc/nrpe.cfg -d

【服务器端】

1.添加监控模块:

vi /usr/local/nagios/etc/object/services.cfg

添加:

--------

define service{

host_name server1

service_description check_mem

check_command check_nrpe!check_mem

max_check_attempts 5

normal_check_interval 3

retry_check_interval 2

check_period 24x7

notification_interval 10

notification_period 24x7

notification_options w,u,c,r

}

---------

2.重启服务

service nagios restart

3.访问http://192.168.7.249/nagios/

如图

声明: 本文采用 CC BY-NC-SA 3.0 协议进行授权

转载请注明来源：DevOps技术分享

本文链接地址：http://www.showerlee.com/archives/606

CentOS 6.3_Nagios安装笔记

showerlee — Tue, 27 Aug 2013 11:04:51 +0000

1、安装前准备

Nagios安装前，首先安装相关软件包，对于RHEL / CentOS系统: (依赖包的安装：wget httpd php gcc glibc glibc-common gd gd-devel make net-snmp openssl openssl-devel)

检看一下是否安装相关软件包：

# rpm -qa |grep *****（略）

# yum install -y wget httpd php gcc glibc glibc-common gd gd-devel make net-snmp openssl openssl-devel

Nagios源代码程序和插件

监控主机下载：

# wget http://nchc.dl.sourceforge.net/project/nagios/nagios-3.x/nagios-3.4.4/nagios-3.4.4.tar.gz

# wget http://nchc.dl.sourceforge.net/project/nagiosplug/nagiosplug/1.4.16/nagios-plugins-1.4.16.tar.gz

# wget http://sourceforge.net/projects/nagios/files/nrpe-2.x/nrpe-2.14/nrpe-2.14.tar.gz

被监控Linux 主机下载：

# wget http://nchc.dl.sourceforge.net/project/nagiosplug/nagiosplug/1.4.16/nagios-plugins-1.4.16.tar.gz

# wget http://sourceforge.net/projects/nagios/files/nrpe-2.x/nrpe-2.14/nrpe-2.14.tar.gz

被监控Windows 主机下载：

http://nsclient.org/nscp/downloads

http://files.nsclient.org/0.3.x/NSClient%2B%2B-0.3.9-Win32.zip

http://files.nsclient.org/0.3.x/NSClient%2B%2B-0.3.9-x64.zip

2、添加Nagios用户和组　　

# useradd nagios

# passwd nagios

# groupadd nagcmd

# usermod -a -G nagcmd nagios

3、编译与安装Nagios

# tar -zxvf nagios-3.4.4.tar.gz

# cd nagios

#./configure --with-command-group=nagcmd //编译Nagios 配置脚本并使用先前开设的用户及用户组

#make all //编译Nagios 程序包源码

安装二进制运行程序、初始化脚本、配置文件样本并设置运行目录权限

#make install

#make install-init

#make install-config

#make install-commandmode

#make install-webconf

复制nagios/contrib/eventhandlers目录下所有文件到/usr/local/nagios/libexec下：

#cp -R contrib/eventhandlers/ /usr/local/nagios/libexec/

修改用户和主权限

#chown -R nagios:nagios /usr/local/nagios/libexec/eventhandlers

验证Nagios配置文件，验证配置是否有误

#/usr/local/nagios/bin/nagios -v /usr/local/nagios/etc/nagios.cfg

重启httpd

# /etc/init.d/httpd start

# chkconfig httpd on

修改配置文件

# vim /usr/local/nagios/etc/objects/contacts.cfg

修改nagiosadmin（这里修改为你自己创建的帐号）注：nagiosadmin是配置文件默认，可以不用修改。

创建一个默认用户登录Web界面访问: 创建HTTP认证用户登录Nagios，用户名nagiosadmin，密码123456

# htpasswd -c /usr/local/nagios/etc/htpasswd.users nagiosadmin

New password: 123456

Re-type new password: 123456

验证程序是否被正确安装：

切换目录到安装路径（这里是/usr/local/nagios）,看是否存在 bin etc libexec sbin share var这六个目录，如果存在则可以表明程序被正确的安装到系统了。后表是六个目录功能的简要说明：

bin	Nagios执行程序所在目录，nagios文件即为主程序
etc	Nagios配置文件位置，初始安装完后，只有几个*.cfg-sample文件
libexec	Nagios 系统库文件
sbin	Nagios Cgi文件所在目录，也就是执行外部命令所需文件所在的目录
Share	Nagios网页文件所在的目录
Var	Nagios日志文件、spid 等文件所在的目录
var/archives	Empty directory for the archived logs
var/rw	Empty directory for the external command file

4、编译并安装Nagios 插件

# tar zxvf nagios-plugins-1.4.16.tar.gz

# cd nagios-plugins-1.4.16

#./configure --with-nagios-user=nagios --with-nagios-group=nagios

# make;make install

会显示安装的插件文件,即所有的插件都安装在libexec这个目录下

# ls /usr/local/nagios/libexec/

验证Nagios 配置文件

# /usr/local/nagios/bin/nagios -v /usr/local/nagios/etc/nagios.cfg

5、启动Nagios

#/etc/init.d/nagios start

# chkconfig nagios on

6、登录到WEB界面

输入用户名密码:nagiosadmin 123456

http://localhost/nagios

Services

7、防火墙配置

service iptables stop

配置完毕

声明: 本文采用 CC BY-NC-SA 3.0 协议进行授权

转载请注明来源：DevOps技术分享

本文链接地址：http://www.showerlee.com/archives/601
